Exceptional price · American quality
We make the parts that go inside the vessel.
Perforated risers, tubesheet assemblies, support plates, mesh pads, vane packs, cyclonics, strainers, cartridge carriers, davits and quick-open closures — engineered to order and fabricated in Mineral Wells, Texas.
Spec 01 · Perforation
Every riser is drilled to a number.
Open area is the number that decides whether a riser passes flow or chokes it. We drill 23% to 58% on 60° staggered pitch. Move the slider and watch the plate change.
- Open area
- %
- Hole Ø
- in
- Pitch, c–c
- 0.500 in
- Pattern
- 60° staggered
- Holes / ft²
Open area on triangular pitch = (π ⁄ 2√3)(d ⁄ p)². Shown at a fixed 0.500″ pitch; in production the pitch moves too. Tell us the flow and the pressure drop you have to hit and we will size it.
- Diameters
- 0.385″ thru 11.90″
- Material
- Carbon & 300-grade stainless
- Gauge
- 22ga to 10ga
- Ends
- Welded & threaded
Scope of supply
What we make
Eleven lines, one shop, one point of contact. Most of it ships engineered to order against your drawing or ours.
- Vessel sizing & design assistanceBring the service conditions; we will work the internals back from them.
- Risers & componentsPerforated, welded or threaded, 0.385″ thru 11.90″.

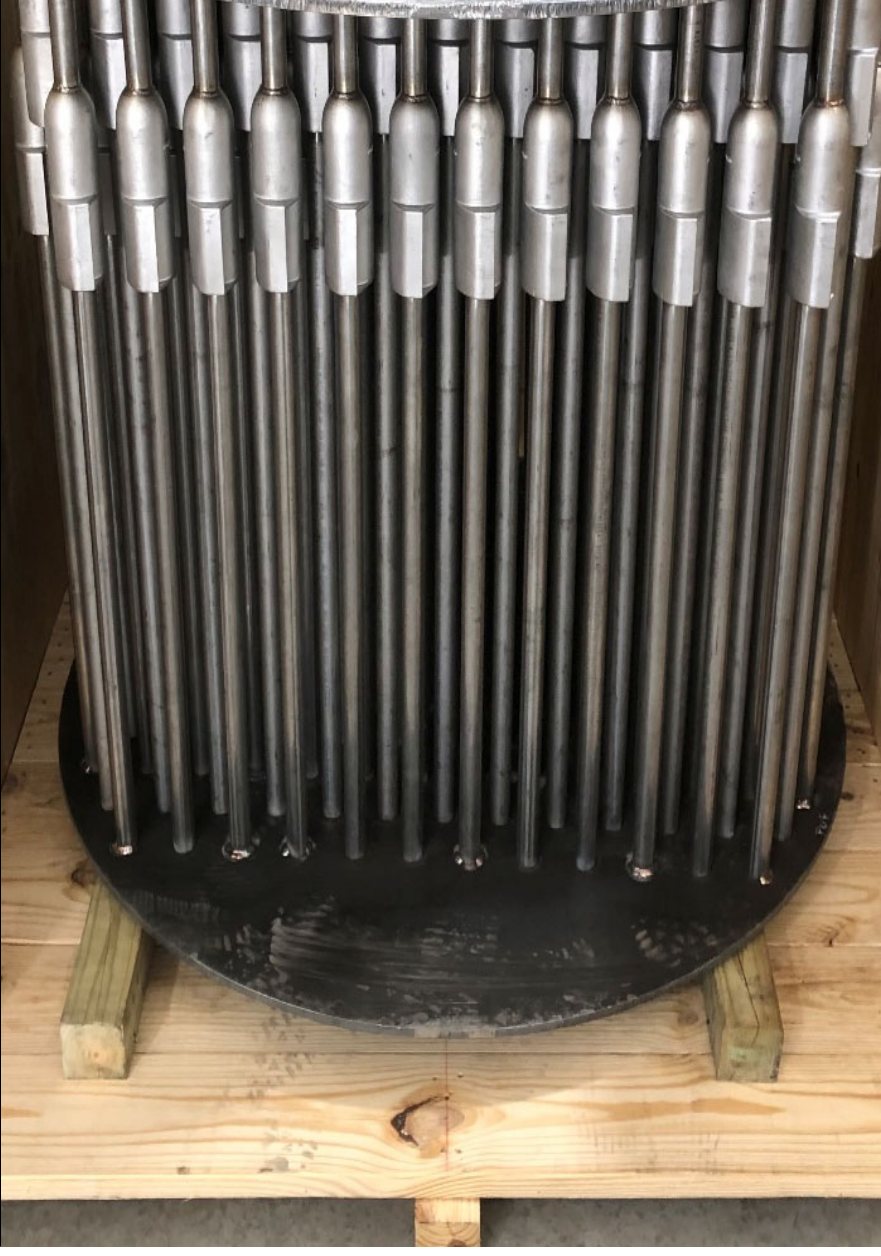

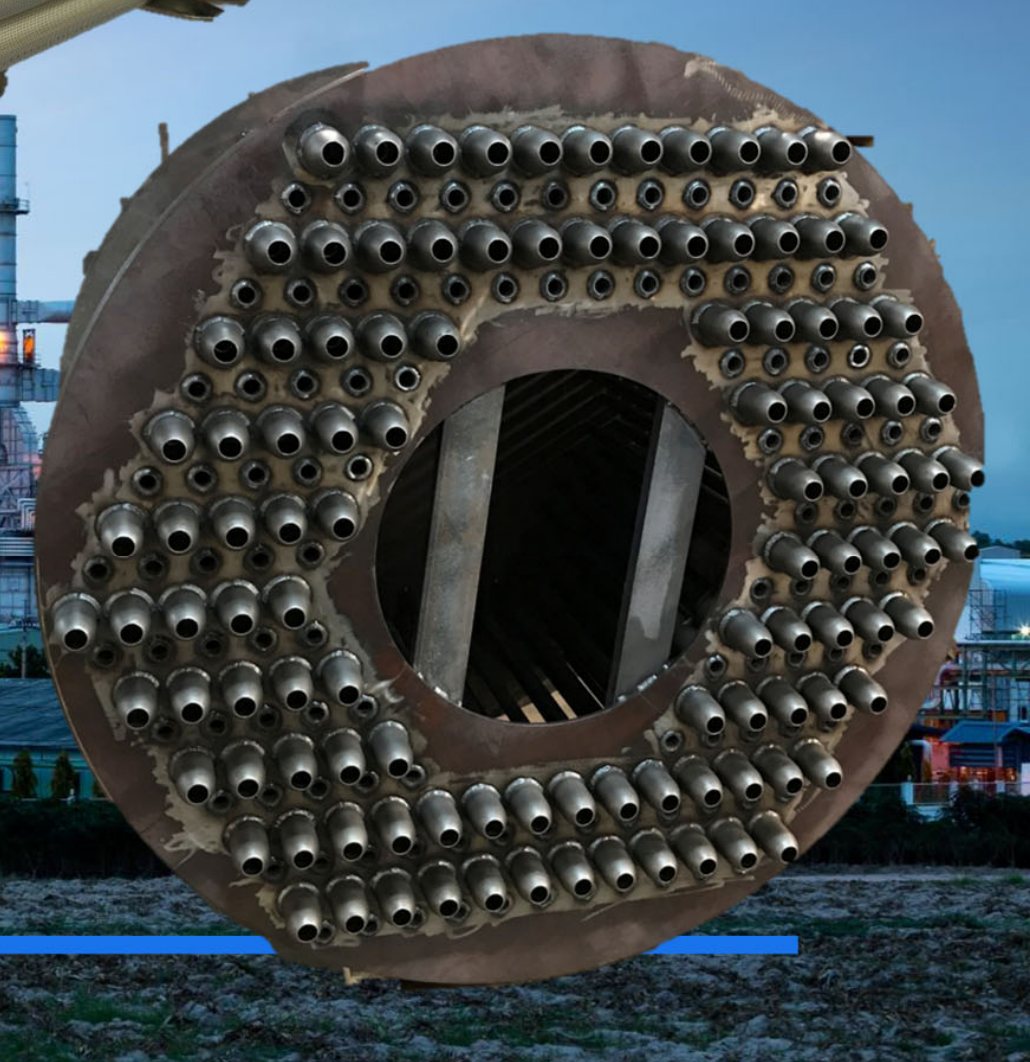

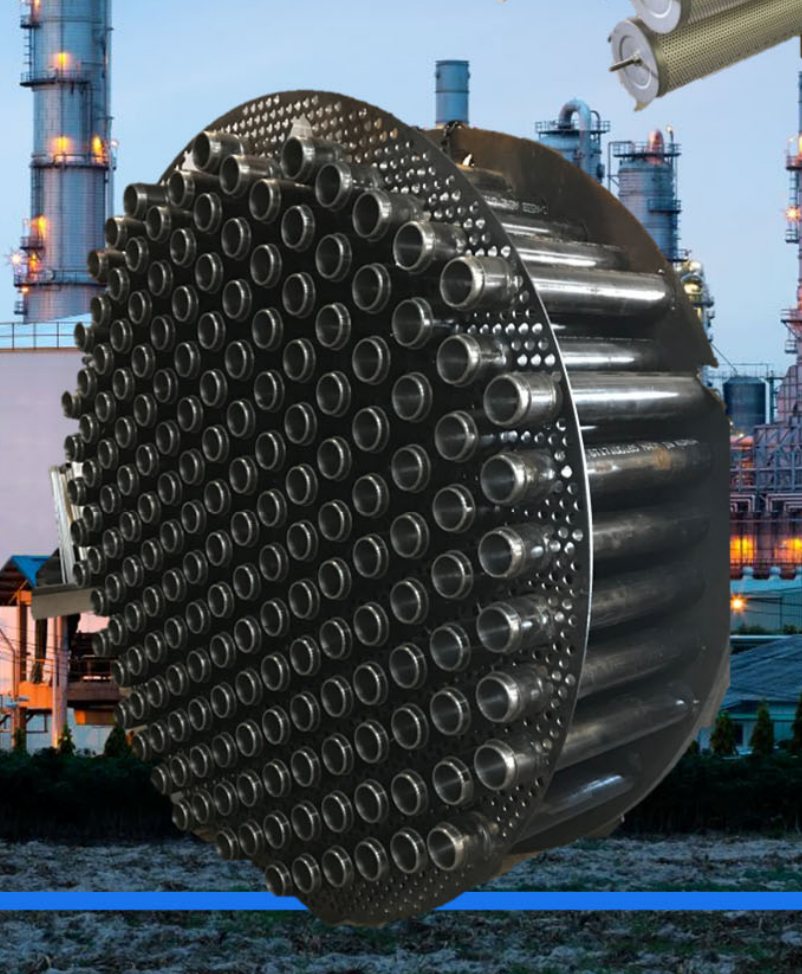

- Tubesheet assembliesDrilled, rolled and welded bundles, carbon or stainless.
- Support platesDrilled and profiled to the vessel ID.

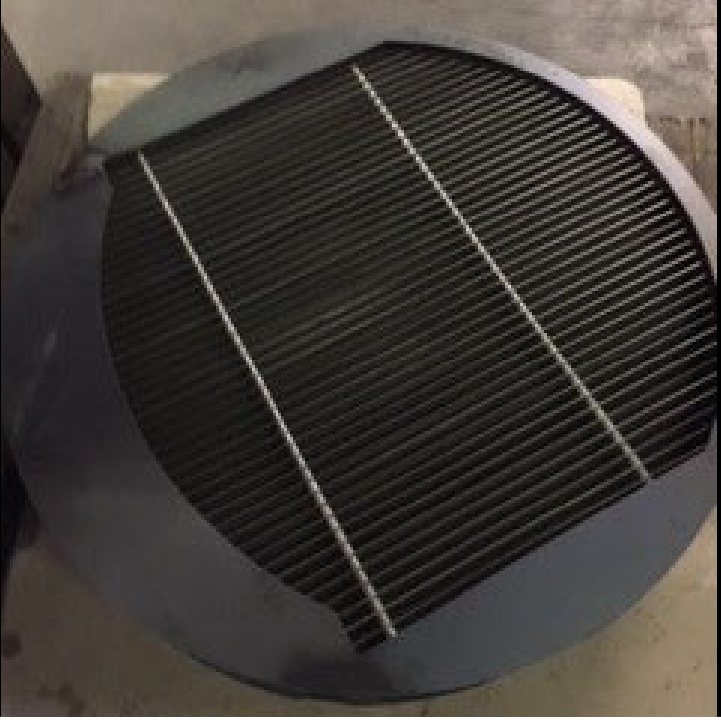

- Mesh padsKnitted mesh on grid, sized to the separation duty.
- Vane packsConventional, single pocket and double pocket. Square, round, custom.
- CyclonicsSingle tubes through full multicyclone bundles.
- StrainersBasket, tee and custom fabricated.

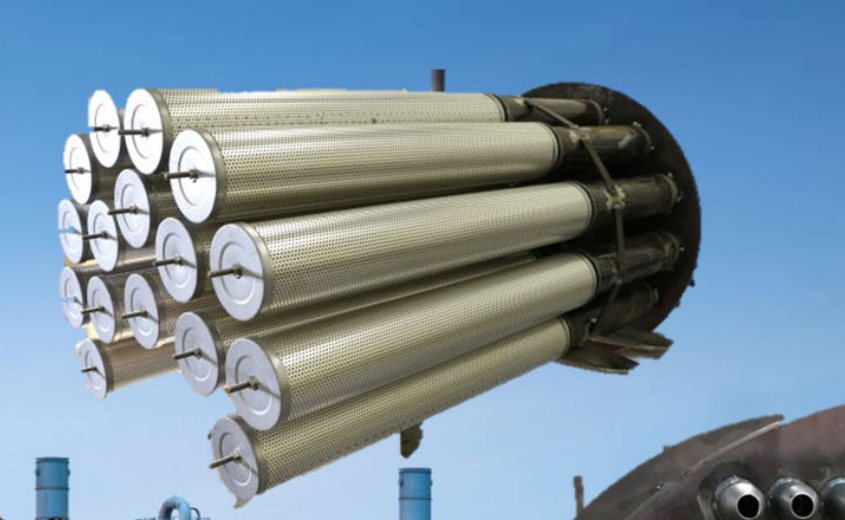

- Cartridge carriersCoalescer and filter carriers on drilled plate.
- DavitsSized for the closure and the head you are opening.
- Quick-open closuresGD Bandlock 2, 6″ thru 120″ nominal.
Product 01

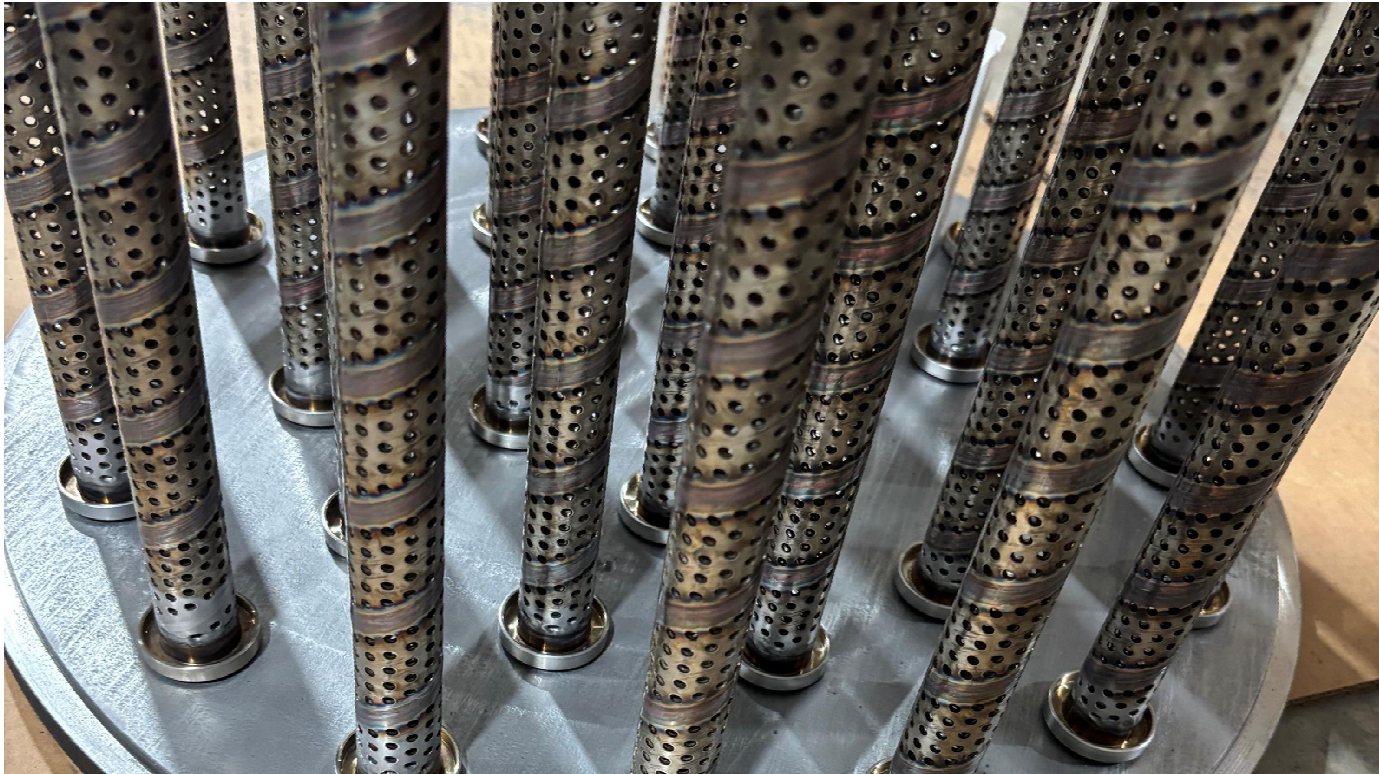

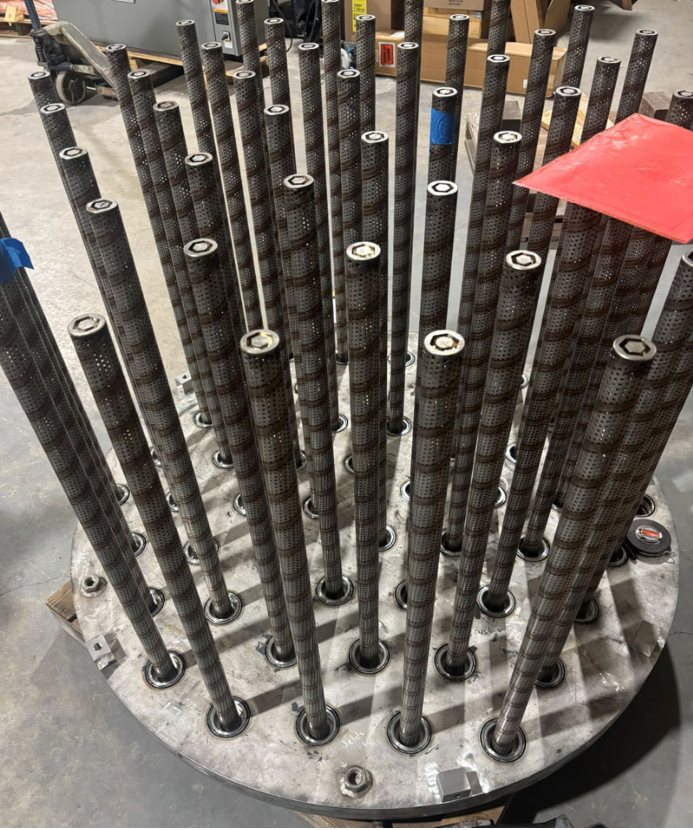

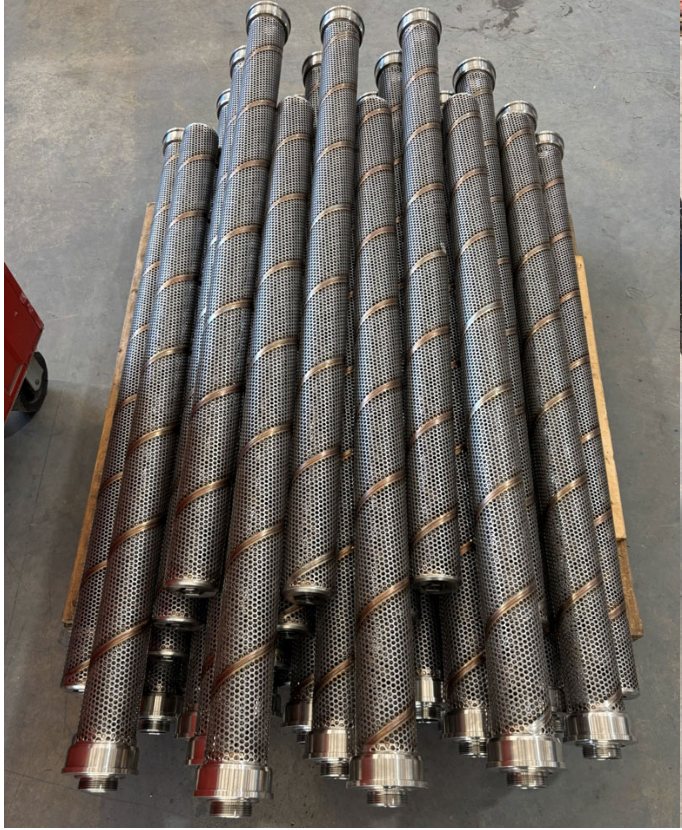

Custom perforated tubes & risers
Welded and threaded risers in carbon and 300-grade stainless, drilled to your open area and cut to your length. We hold the tooling for the small diameters most shops turn down.
-
MatlCarbon & 300-grade SS
Dia0.385″ – 11.90″
Open23% – 58%
Ga22ga – 10ga
EndsWelded / threaded
Product 02 · Side by side

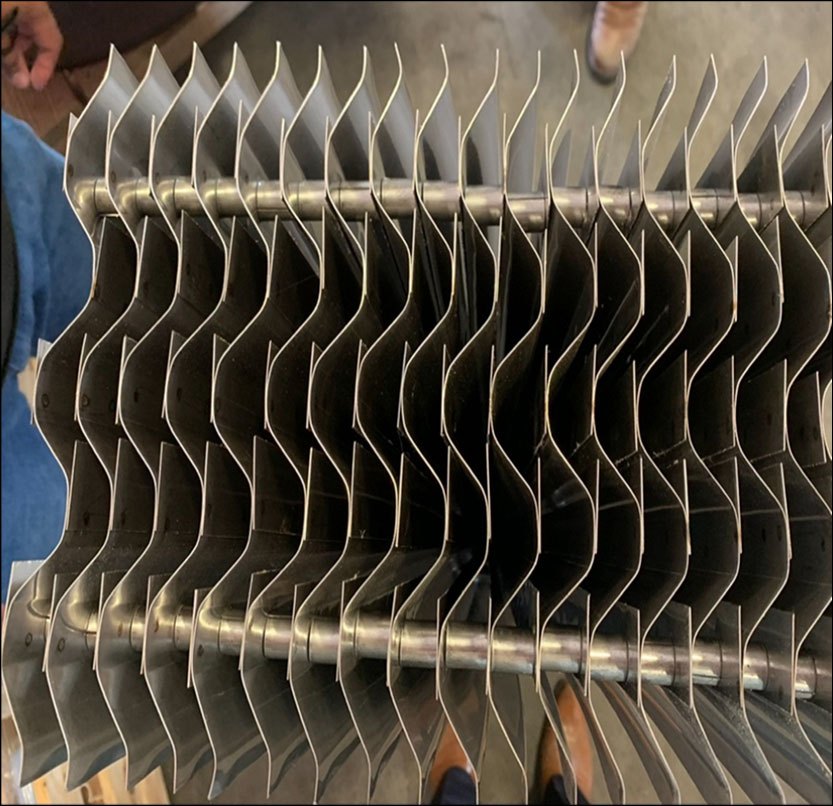

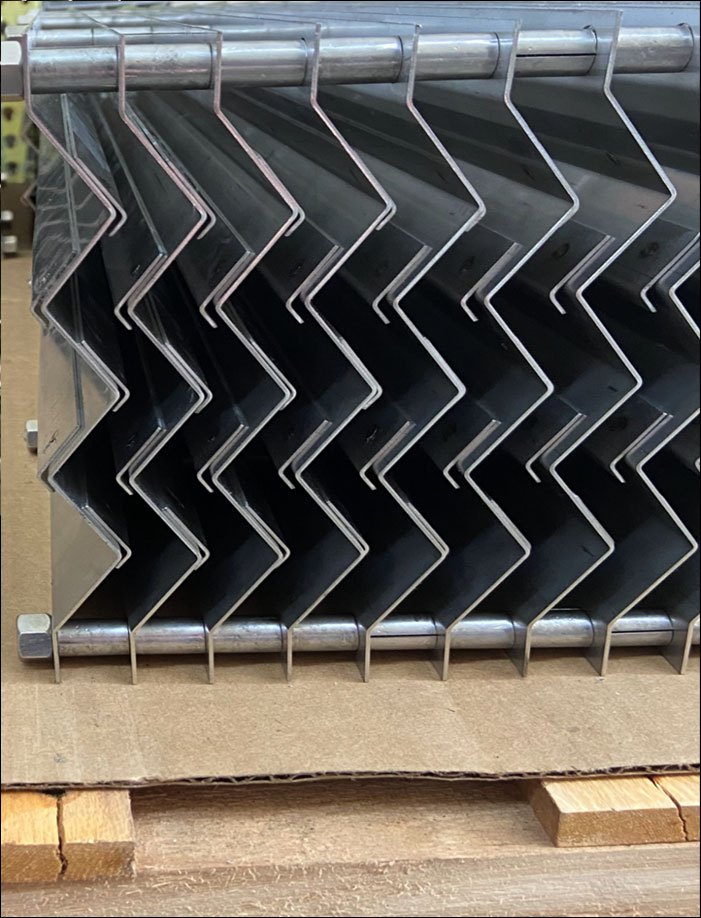

Vane packs, and what a cheap one costs you
Both of these are vane packs. One of them was built to a price. Hover the markers on the left.
- Material
- Typically 304 or 316 SS
- Styles
- Conventional · single pocket · double pocket
- Profiles
- Square, round & custom
- Sizing
- Custom per client needs
Product 03
Custom assemblies
Where the internals stop being parts and start being one weldment that has to drop into a vessel on a turnaround clock.
- Carbon bed piping
- Multicyclone bundles
- Tubesheet bundles
- Custom strainers
- Mesh / vane assemblies

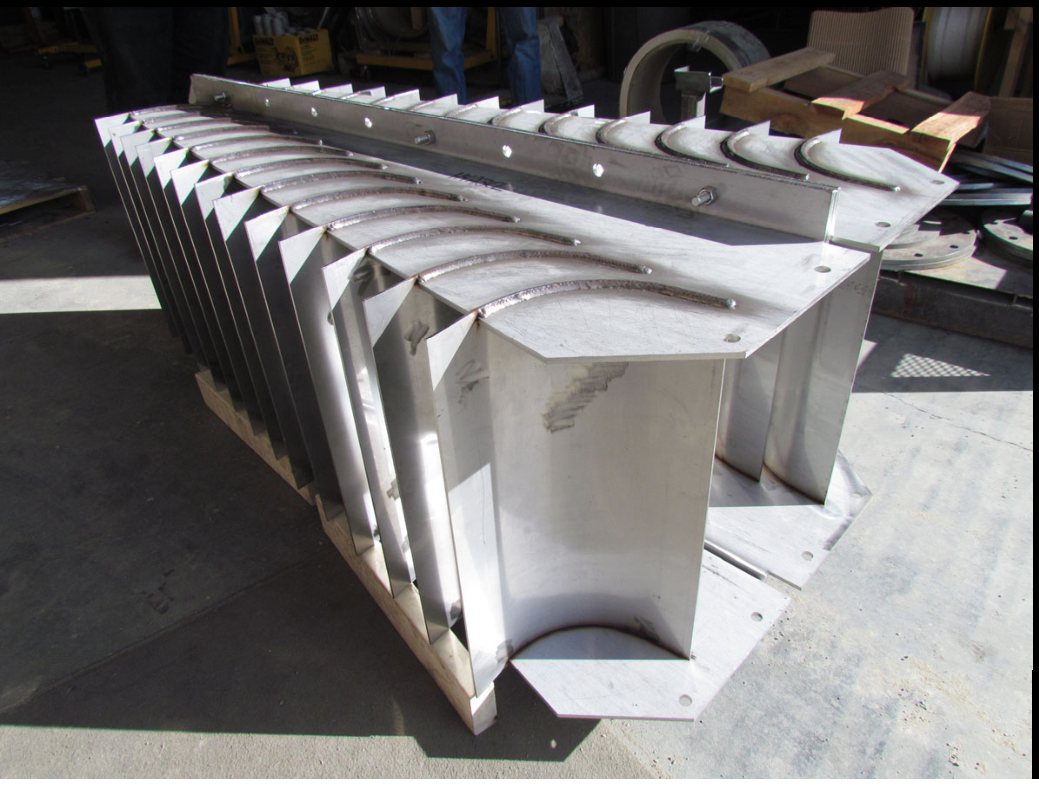

- Inlet devices
- and much more

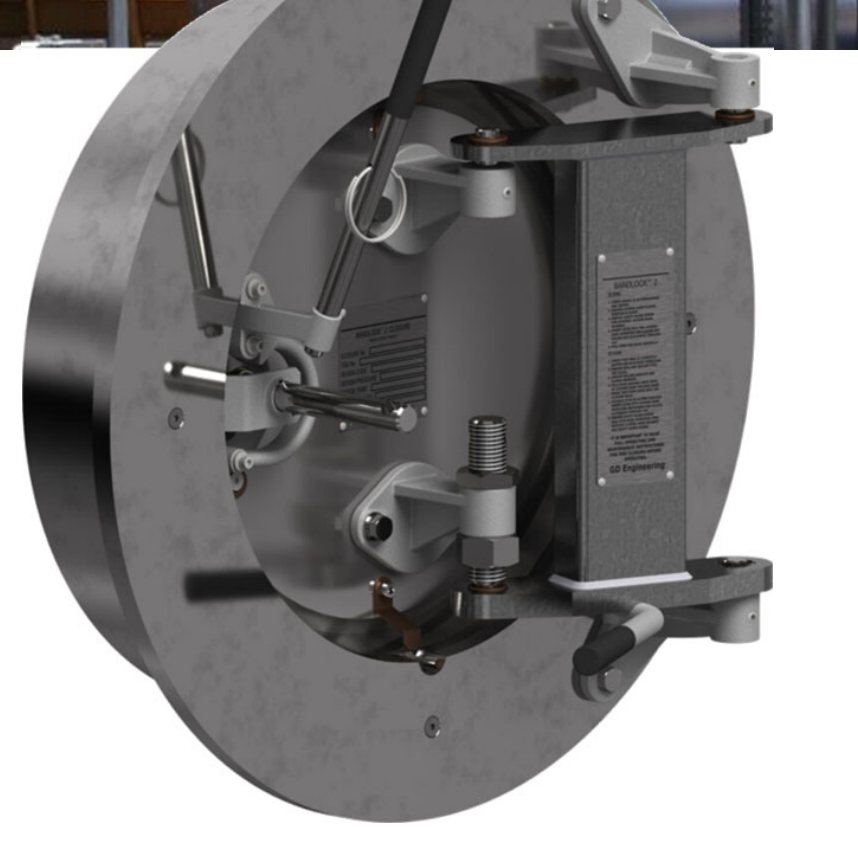

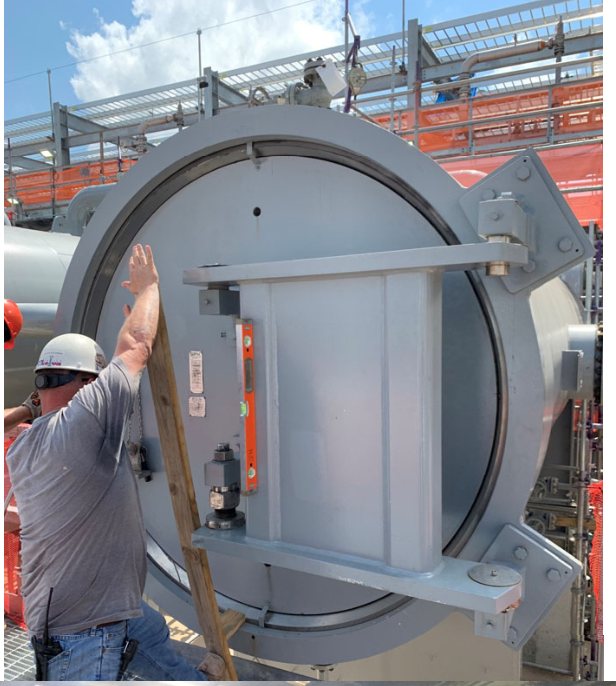

Product 04 · GD Bandlock 2

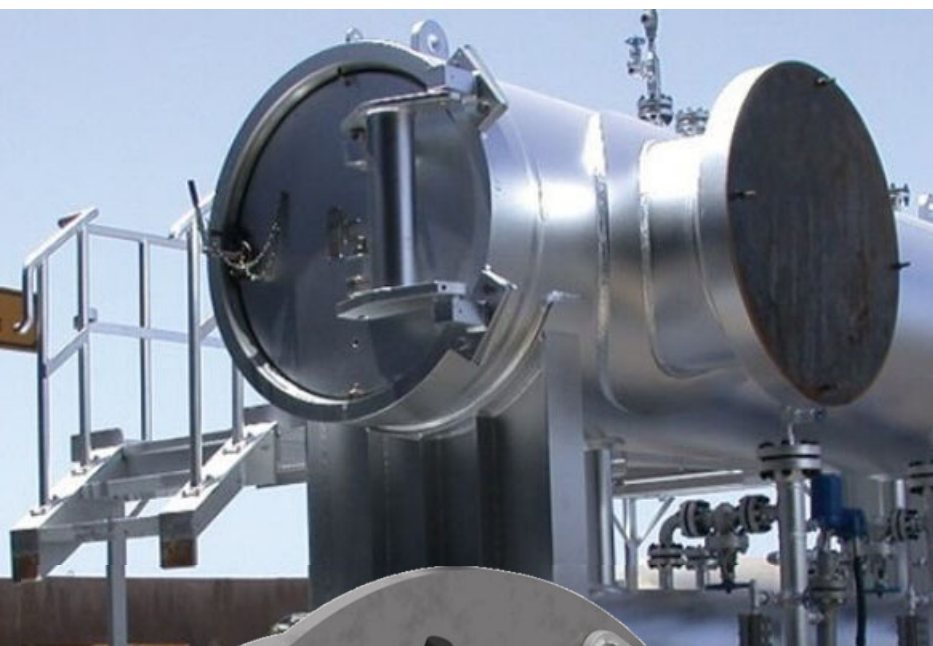

Quick-open closures, including the big ones
The original internal-door locking band — the 1985 patent — in horizontal and vertical orientation. We specialise in large diameter, and we do not stop at the purchase order: FNS services closures, trains your crew in the office and in the shop, and supports installation and hydrotest.
-
Size6″ – 120″ nominal
RatingASME 150# – 2500# and above
Matl316 SS · Inconel 625 weld overlay · to spec
OrientHorizontal & vertical
SafetyInterlock systems available
Product 05 · ASME code shop

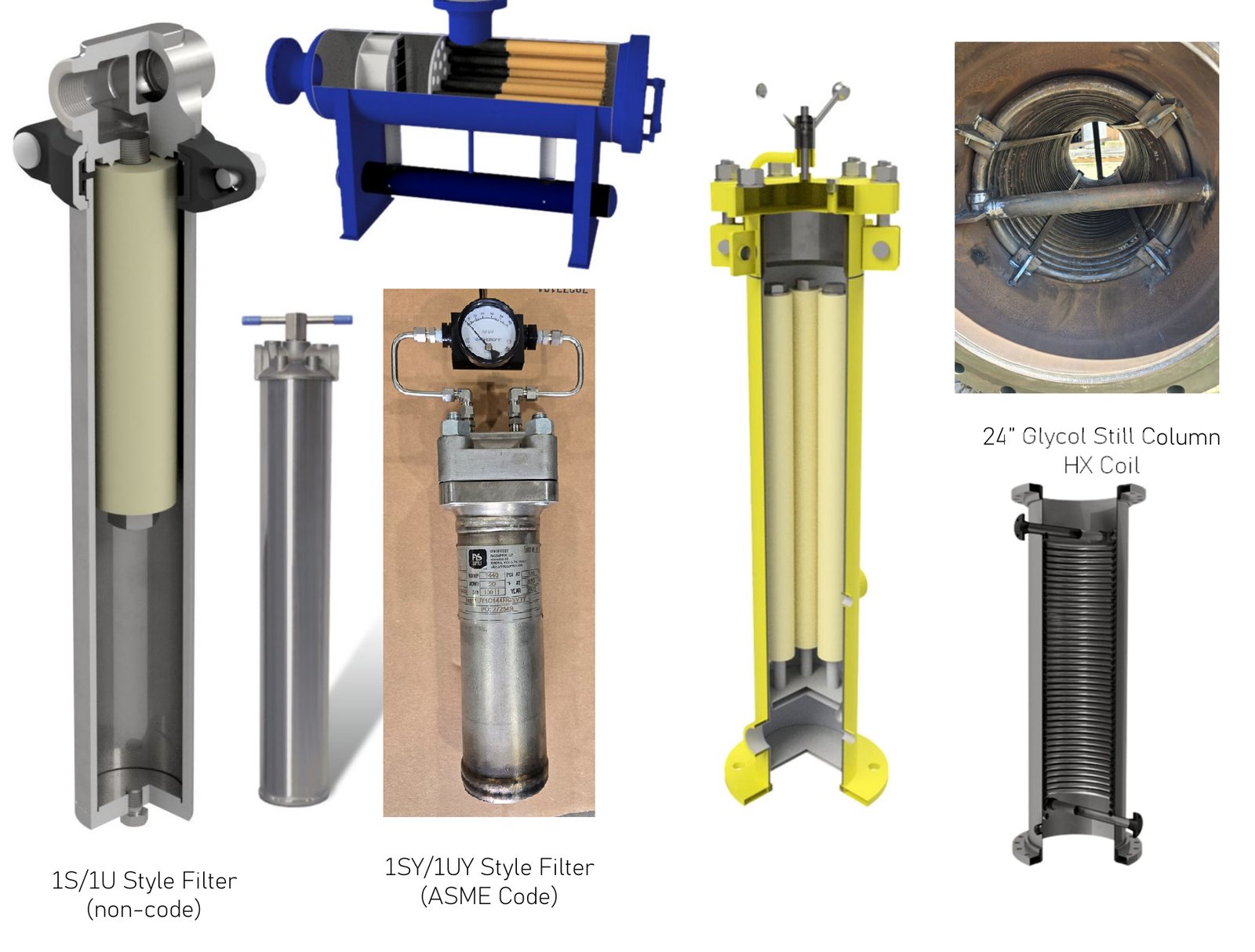

Filter housings, 24″ and down
A code shop dedicated to small vessels — filtration & separation, instrumentation and heat exchange. Two families, and the honest difference between them.
| Attribute | 1S / 1U Clamp style |
1SY / 1UY ASME style |
|---|---|---|
| Code | Non-code | U-stamp or non-code |
| Pressure | Up to 2,000 PSI | Up to 3,000 PSI |
| Closure | Clamp | 4-bolt flange |
| Material | Carbon steel / 316 SS | Carbon steel / 316 SS |
| Diameter | 24″ and down | 24″ and down |
On-site coalescer testing kits ship with the housings — so the element gets proven in your service, not on a datasheet.

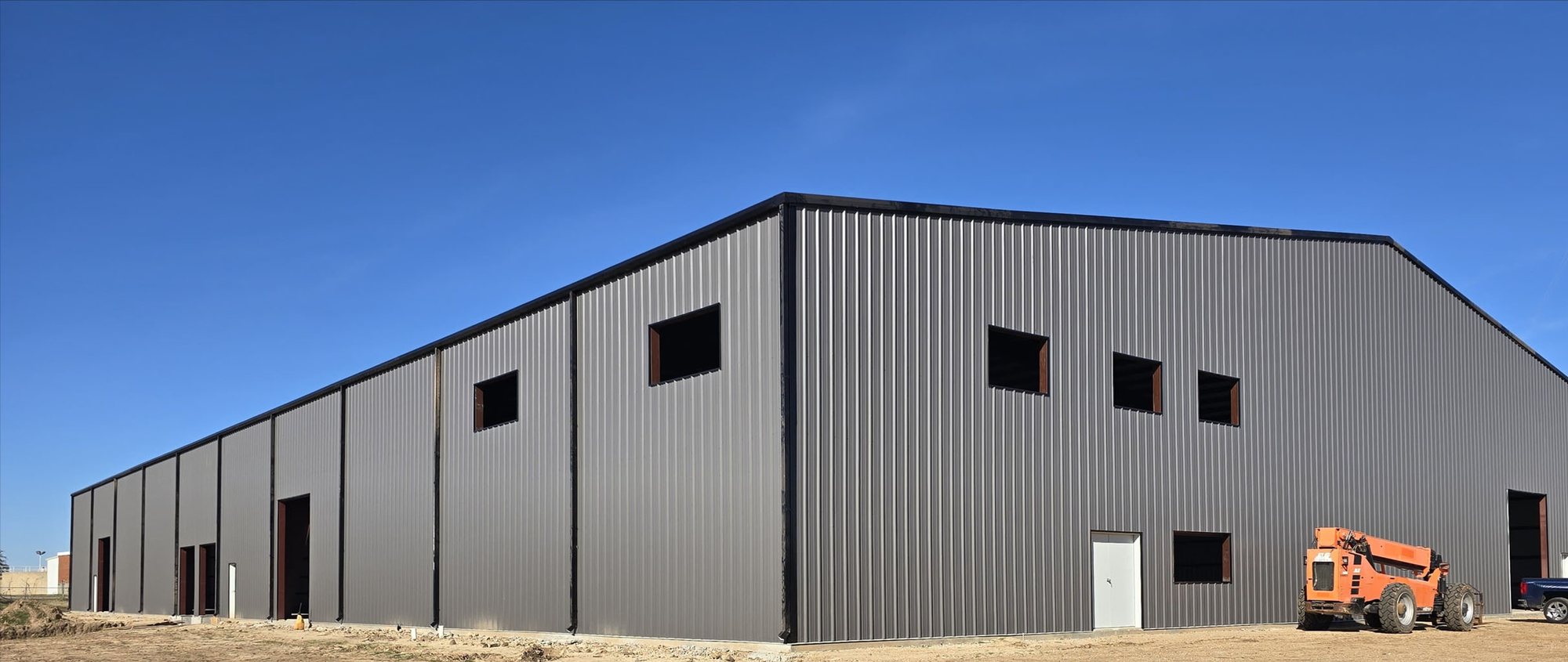

Mineral Wells, Texas
40,000 sq ft
and still pouring slab
Buildings 1 and 2 on one site, Building 3 on another, and 40,000 square feet of expansion between them. Everything on this page is made here — which is why "American quality" is a fact on our shop floor and not a line in a brochure.
- Expansion
- 40,000sq ft
- Buildings
- 3on two sites
- Code shop
- 24″and down
- Stamp
- Uor non-code
Request a quote
Send us the conditions.
We will send back a number.
A drawing is ideal. A napkin sketch and a service description is enough to start. The more of this we have, the tighter the quote comes back.
- Service & fluid — what is being separated from what
- Flow rate and operating pressure / temperature
- MAWP and design temperature, if the vessel is coded
- Vessel ID, or the closure nominal size
- Materials of construction
- Code requirement — U-stamp or non-code
- Quantity and need-by date
